تفاصيل المنتج:
|
| وزن: | 1000 كجم | الجهد االكهربى: | 220 فولت |
|---|---|---|---|
| البعد (الطول * العرض * الارتفاع): | 2300*1280*1150 مللي متر | ضمان: | سنة واحدة |
| وقت التصنيع: | 2019 | حجم اللوحة: | 1130*930 |
| إبراز: | UV CTP plate making machine with warranty,CTCP plate printing machine for offset,UVCTP plate making machine high performance,CTCP plate printing machine for offset,UVCTP plate making machine high performance |
||

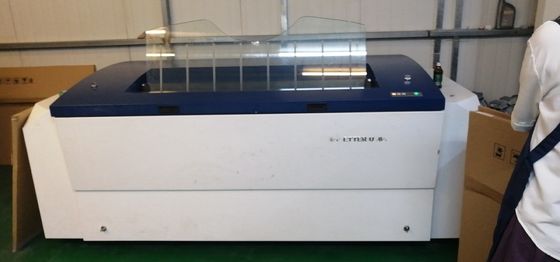

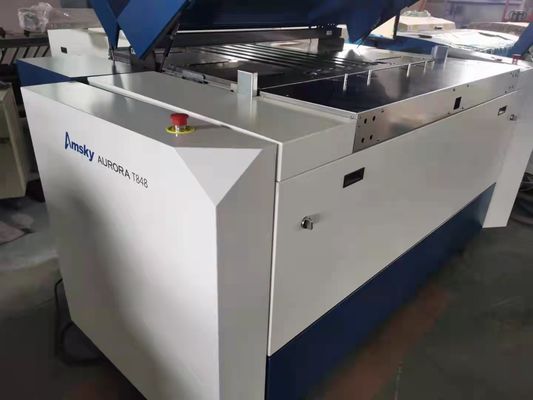

UV CTP plate making machine, CTCP plate making machine, UVCTP plate making machine
Mature and reliable 32-64 channels; Discrete 830nm laser diode technology.
Extremely clear and sharp screen dots can be exposed; Resistance rate is high and it’s operated in light room; Service life extends as long as tens of thousands of hours; Replacement is economic and convenient.
Dynamic and Automatic Focusing
Track in real time the variation of surface fluctuation and adjust the lens forwards or backwards to assure the distance between exposure dots and lens is unchangeable. Each laser spot is exposed at the best focal length to assure all the screen dots are accordant, clear and sharp.
Special Screen Dots Control Technology
Screen dots gain problems caused by size of laser spots are accurately compensated for so that 1%~ 99% grayscale gradients is perfectly presented.
Exposure Design with External Drum Style
The printing plates are clamped and bent in the style closest to the press, high-quality and exactly accordant dots are exposed and printing formes are output at high speed up to 29 pages of 1030x800mm per hour.
Convenient Operation
High-speed USB2.0 interface makes Thermal CTP have Plug and Play function like a desktop printer. The aided output management software (Tiff download) can realize seamless link with any mature workflow.
Technical Specification:
| Mode | U832 | U848 | U864 | T832 | T848 | T864 |
| Exposing Method | External Drum | |||||
| Imaging System | 32-channel | 48-channel | 64-channel | 32-channel | 48-channel | 64-channel |
| Discrete 400-410nm laser | Discrete 830nm laser | |||||
| Output Speed | 16 plates/hour | 22 plates/hour | 28 plates/hour | 16 plates/hour | 22 plates/hour | 28 plates/hour |
| 1,030×800mm 2,400dpi | ||||||
| Plate Size | Max.1,130×920mm,Min. 400×300mm | |||||
| Exposing Size | Max.1,130×904mm | |||||
| Media Type | UV plate, high-sensitive PS plate | Thermal plate | ||||
| Plate Thickness | 0.15mm~0.3mm | |||||
| Resolutions | 2,400dpi | |||||
| Repeatablity | ±5μm(Continuous exposure over four times on the same plate with a temperature of 23°C and 60% RH ) | |||||
| Interface | USB2.0/USB3.0(Recommended option is USB2.0) | |||||
| Plate Loading | First manual, then autoload | |||||
| Net Weight | 900KG | |||||
| Device Size | 2,530×1,050×950mm(W×D×H) | |||||
| Power supply | Single phase:200V-240V; Max power(Peak value):4KW | |||||
| Environment | Recommended temperature: 21-25°C Allowable temperature: 18-26°C Humidity: <70% | |||||
