تفاصيل المنتج:
|
| حالة: | آلة مستعملة | وقت التصنيع: | 2019 سنوات |
|---|---|---|---|
| الطاقة الانتاجية القصوى: | 1160*960 مللي متر | كمية الإخراج: | 28 قطعة/ساعة |
| وزن: | 900 كجم | الجهد االكهربى: | 220 فولت |
| إبراز: | CTCP Computer Board Making Machine,1160x960mm Board Making Machine,28pcs/H CTCP Printing Machine,1160x960mm Board Making Machine,28pcs/H CTCP Printing Machine |
||

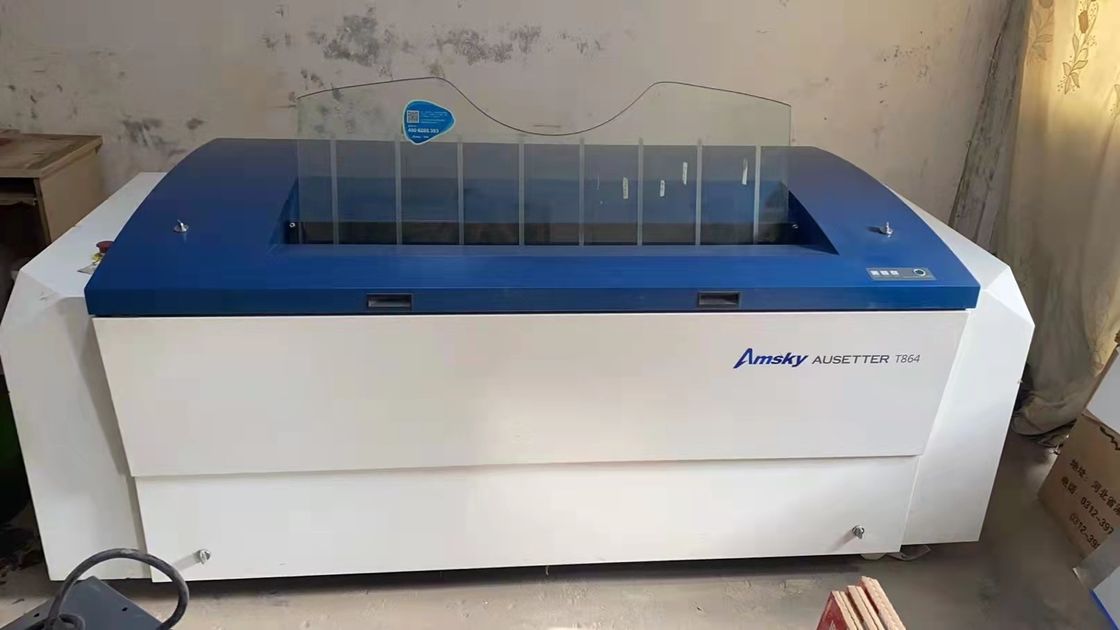

CTCP board making machine, CTCP computer board making machine, UVCTP computer board making machine
| Mode | CD-32V | CD-48V | CD-64V | CD-32R | CD-48R | CD-64R | |||
| Exposing Method | External Drum | ||||||||
| Imaging System | 32-channel | 48-channel | 64-channel | 32-channel | 48-channel | 64-channel | |||
| Discrete 400-410nm laser | Discrete 830nm laser | ||||||||
| Output Speed | 16 plates/hour | 24 plates/hour | 28 plates/hour | 16 plates/hour | 24 plates/hour | 28 plates/hour | |||
| 1,030×800mm 2,400dpi | |||||||||
| Plate Size | Max.1,130×920mm,Min. 400×300mm | ||||||||
| Exposing Size | Max.1,130×904mm | ||||||||
| Media Type | UV plate, high-sensitive PS plate | Thermal plate | |||||||
| Plate Thickness | 0.15mm~0.3mm | ||||||||
| Resolutions | 2,400dpi | ||||||||
| Repeatablity | ±5μm(Continuous exposure over four times on the same plate with a temperature of 23°C and 60% RH ) | ||||||||
| Interface | USB2.0/USB3.0(Recommended option is USB2.0) | ||||||||
| Plate Loading | First manual, then autoload | ||||||||
| Net Weight | 900KG | ||||||||
| Device Size | 2,530×1,050×950mm(W×D×H) | ||||||||
| Power supply | Single phase:200V-240V; Max power(Peak value):4KW | ||||||||
| Environment | Recommended temperature: 21-25°C Allowable temperature: 18-26°C Humidity: <70% | ||||||||
