تفاصيل المنتج:
|
| وزن: | 960 كجم | حالة: | جديد أو مستعمل |
|---|---|---|---|
| حجم اللوحة: | 1160*960 | الأبعاد (الطول * العرض * الارتفاع): | 1290*1150*1050 |
| الجهد االكهربى: | 220 فولت | سرعة الطباعة: | 30-150 م / دقيقة |
| إبراز: | 150m/Min CTCP Plate Making Machine,30m/Min CTCP Plate Making Machine,UVCTP Board Making Machine,30m/Min CTCP Plate Making Machine,UVCTP Board Making Machine |
||

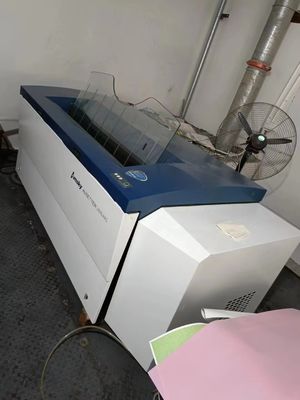

UV type CTP board making machine, CTCP board making machine, UVCTP computer board making machine
| Model | CD-48V | CD-64V | |||
| Material | uvctp machine (CTCP machine ) | ||||
| Capacity(cm/min) | 20—150 | ||||
| Plate width (mm) | 850mm | 1150mm | |||
| Min. Plate length(mm) | 300 | ||||
| Plate thickness(mm) | 0.15—0.3 | ||||
| Tank content, developer(L) | 38 | 56 | |||
| Tank content, wash(L) | 13.5 | 18 | |||
| Adjustable temperature, dev(°C) | 0—40(104°F)0 to 40°C adjustable (32—104°F) | ||||
| Adjustable temperature, dry(°C) | |||||
| Water consumption, max(L/min) | 8 | 10.5 | |||
| Diameter of wash brush (mm) | 50 | ||||
| Rotary speed of wash brush | 80 | ||||
| Filter(um) | 75 | ||||
| Water supply | Tap water (min. pressure 1 bar) | ||||
| Gumming | Roller pressing gumming | ||||
| Diameter of roller | 60mm | ||||
| Dev. replenishment | 0—1 | ||||
| Dev. heating-up rate | 0.5 | ||||
| Horizontal adjustment | Adjustable | ||||
| Power supply | 220V 1φ 50—60Hz 30A | ||||
| Power consumption (kw/h) | 3.5 | 4 | |||
| Voltage fluctuation | ±10% | ||||
| Gross weight(kg) | 500 | 650 | |||
| Net weight(kg) | 420 | 580 | |||
|
Mechanic size(mm)
|
1260*1520*1040
|
1525*1520*1040
|
|
||
| Packing size(mm) | 1360*1620*1250 | 1625*1620*1250 | |||
| Optional configuration :plate stack .water filtration system | |||||
