تفاصيل المنتج:
|
| نموذج: | 848 | متطلبات الجهد: | 220 فولت |
|---|---|---|---|
| الطاقة الانتاجية القصوى: | 1160*960 | الحد الأدنى من الإخراج: | 400*350 |
| وزن الجهاز: | 900 كجم | استخدام نموذج اللوحة: | سي دي آر |
| إبراز: | 220V Offset Printing Plate Making Machine,Computer CTP Plate Machine,CTP Plate Making Machine 220V,Computer CTP Plate Machine,CTP Plate Making Machine 220V |
||

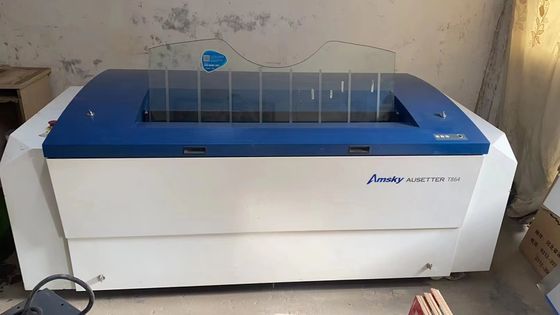

Offcest printing plate making machine ,plate making machine ,CTP platye machine COmputer plate making machine
The plate making adopts the most advanced and latest fiber laser, and the imaging is accurate and fast.
For plate making machines, our company has new and old machines. CTP machines and CTCP machines, split or conjoined. Choose different machines according to customer requirements.
A conventional computer plate-making machine requires a 50-square-meter room to place the machine. Keep the interior clean and tidy at all times.
Brand new machine, two years warranty, all parts are factory made.
Second-hand machine warranty for one year. Before delivery, my engineer will do three detailed inspections, replace damaged parts, and give customers a different feeling. Let customers get the best.
| Technical Parameters | ||||||||||
| Model | Thermal | UV | ||||||||
| T824 | T832 | T848 | T864 | T8128 | U824 | U832 | U848 | U864 | U8128 | |
| NO.of lasers | 24 | 32 | 48 | 64 | 128 | 24 | 32 | 48 | 64 | 128 |
| Throughput(1130*800) | 13 | 18 | 23 | 28 | 45 | 13 | 18 | 23 | 28 | 45 |
| Max.Min.Format | MAX:1160*940 MIN:400*350 | MAX:1160*940 MIN:400*350 | ||||||||
| Laser source | 830nm | 405nm | ||||||||
| Resoiution | 2400DPI | |||||||||
| Loading system | Automatic,Semi-Auto(Optional Auto-loader) | |||||||||
| Plate requirement | CD. 0.15-0.4 (Thermal plate) | CD. 0.15-0.4 UV plate | ||||||||
| Interface | 1-bit Tiff interface and direct workflow driver,support CIP3/CIP4 | |||||||||
| Power | AC220V,50-60HZ 5.5KVA | |||||||||
| Work environment | Temperature:20-25℃,Humility:40%-80% | |||||||||
