تفاصيل المنتج:
|
| الجهد االكهربى: | 220 فولت | الحد الأقصى لحجم الإنتاج: | 1130*880 مللي متر |
|---|---|---|---|
| استخدم لوحة: | لوحة CTP | صنع سمك اللوحة: | 0.15-0.28 |
| وزن: | 900 كجم | ,مصدر ضوء الليزر: | 830 نانومتر |
| إبراز: | 0.28mm CTP Plate Making Machine,830nm CTP Plate Making Machine,0.15mm ctp plate machine,830nm CTP Plate Making Machine,0.15mm ctp plate machine |
||
| Technical Parameters | ||||||||||
| Model | Thermal | UV | ||||||||
| T824 | T832 | T848 | T864 | T8128 | U824 | U832 | U848 | U864 | U8128 | |
| NO.of lasers | 24 | 32 | 48 | 64 | 128 | 24 | 32 | 48 | 64 | 128 |
| Throughput(1130*800) | 13 | 18 | 23 | 28 | 45 | 13 | 18 | 23 | 28 | 45 |
| Max.Min.Format | MAX:1160*940 MIN:400*350 | MAX:1160*940 MIN:400*350 | ||||||||
| Laser source | 830nm | 405nm | ||||||||
| Resoiution | 2400DPI | |||||||||
| Loading system | Automatic,Semi-Auto(Optional Auto-loader) | |||||||||
| Plate requirement | CD. 0.15-0.4 (Thermal plate) | CD. 0.15-0.4 UV plate | ||||||||
| Interface | 1-bit Tiff interface and direct workflow driver,support CIP3/CIP4 | |||||||||
| Power | AC220V,50-60HZ 5.5KVA | |||||||||
| Work environment | Temperature:20-25℃,Humility:40%-80% | |||||||||

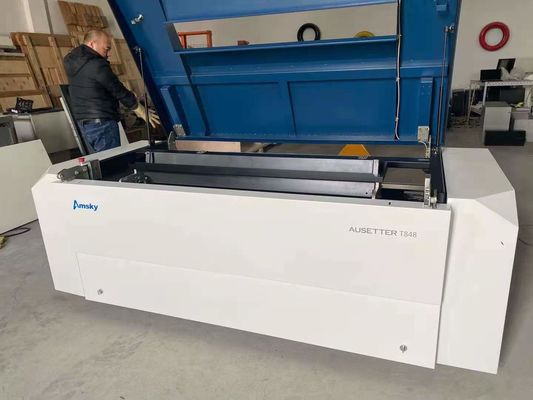

Computer Platesetters, (CTP Machines)
Using imported laser, imaging through thermal energy, precise and fast.
Up to 29 plates per hour
