تفاصيل المنتج:
|
| عملية: | تغذية يدوية وشبه أوتوماتيكية | حالة الجهاز: | آلة متصلة أو آلة مستقلة |
|---|---|---|---|
| حالة استخدام الآلة: | آلة مستعملة | وقت تسليم الجهاز: | 2018 |
| الجهد الآلي: | 220 فولت | نموذج الآلة: | T864 |
| إبراز: | 64 Channels CTP Plate Machine,220V CTP Plate Machine,CTP Thermal Plate Making Machine,220V CTP Plate Machine,CTP Thermal Plate Making Machine |
||

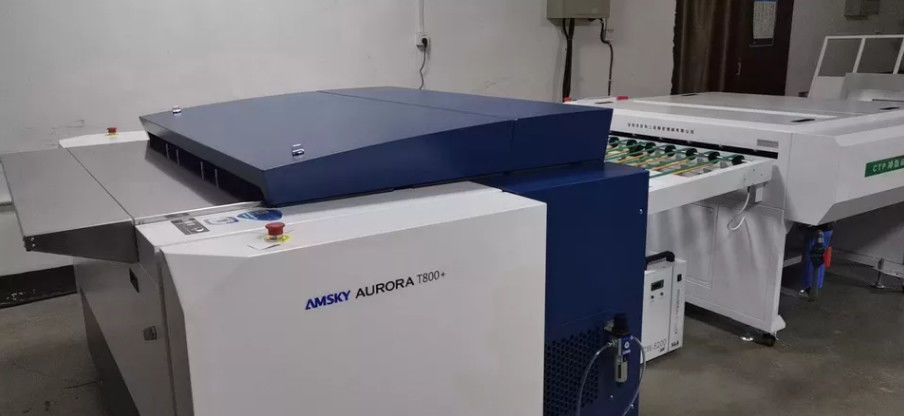

64 Channels Thermal CTP Plate Machine Manual Feeding Without Treatment
CTP plate making machine without treatment, thermal CTP plate making machine, CTP computer plate making machine
| Model | T864 | Weight | 1200 kgs |
| Image system | 64 channels | Size | 2127mm*1405mm*1058mm |
| Throughput | 28 plates per hour | Power Supply | Single phase:220AC, +6%, -10%, Power consumption:4kw |
| Repeatability | ±5μm | Environment | Recommended:21-25ºC, max:18-26ºC, humidity:40-70% |
| Plate thickness | 0.15mm to 0.3mm | Laser type | semiconductor laser |
| Resolutions | 2400 dpi | Laser wavelength | 400-410 nm |
| Plate size(max) | 1130mm*920mm | Plate size (min) | 510mm*400mm |
| Plate loading | Semi automatic | Brand | Ecoographix or OEM |
1. Mature laser diode technology with automatic imaging design
Chuangda CTP ensures very clear and sharp outlets and high operation length. Daytime lighting operation. Any channel failure of the laser diode will not stop the CTP. CTP can use the remaining channels to work. Therefore, McLantis CTP ensures the convenience of continuous production and maintenance.
2. Dynamic autofocus
The performance of the plate-making machine mainly depends on the precise focus control. The printing plate output quality comes from the consistent laser spot accuracy. The third generation dynamic focusing technology is adopted. An accurate distance measurement system can detect small changes of 0.1 micron distance. Driven by the voice coil motor, McLantis CTP can track the changes of the printing plate surface to adjust the longitudinal position of the lens and ensure the constant distance between the lenses. Dynamic autofocus can also avoid the blue spot and blue halo caused by the fine dust on the surface of the photosensitive drum. Each spot is exposed at the best focal length to ensure consistent, clear and sharp spots.
3. Unique point control technology
The unique graphic calibration technology can perfectly reproduce the rectangle and eliminate the dimensional deviation caused by different plate thicknesses. CTP can accurately compensate the point gain problem caused by the laser spot size. CTP can perform 1% to 99% steps perfectly. The registration accuracy of the CTP version is 5 microns.
