تفاصيل المنتج:
|
| البعد المادي: | 1600*1400*1150 | بيئة العمل: | يحفظ في الداخل عند درجة حرارة 18 درجة مئوية |
|---|---|---|---|
| الحد الأقصى لنطاق الإنتاج: | 1130*880 مللي متر | أسرع سرعة: | 29 ورقة في الساعة |
| وقت الضمان: | 1 سنة | الجهد االكهربى: | 220 فولت |
| إبراز: | 220v CTP Plate Machine,Thermal CTP Plate Machine,Thermal CTP Platesetter,Thermal CTP Plate Machine,Thermal CTP Platesetter |
||

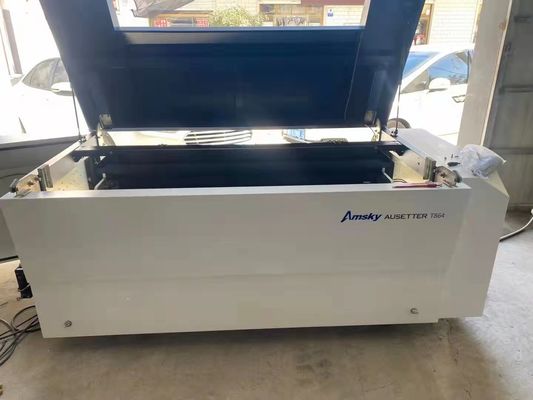

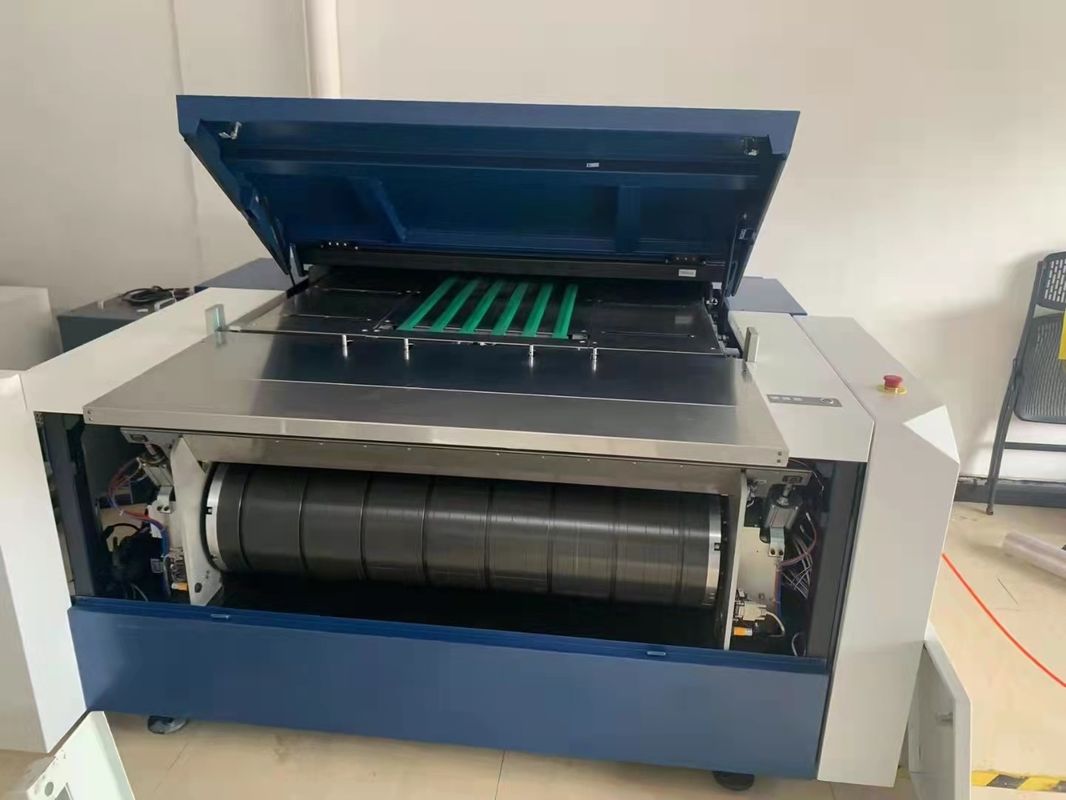

Model: Thermal CTP Machine (CTP Machine)
Operational Requirements:Operate the machine in accordance with engineer training requirements.
Note: The machine is thermal imaging, it is forbidden to open the front cover and side cover of the machine during operation to avoid laser burns.
The indoor temperature should be kept at 18 degrees Celsius, and the space should be inside a 40-square-meter house.
There are two types of machines, one is a split machine and the other is a conjoined machine. The machines are all fully automatic.
| Max.Min.Format | MAX:1160*940 MIN:400*350 | MAX:1160*940 MIN:400*350 | ||||||||
| Laser source | 830nm | 405nm | ||||||||
| Resoiution | 2400DPI | |||||||||
| Loading system | Automatic,Semi-Auto(Optional Auto-loader) | |||||||||
| Plate requirement | CD. 0.15-0.4 (Thermal plate) | CD. 0.15-0.4 UV plate | ||||||||
| Interface | 1-bit Tiff interface and direct workflow driver,support CIP3/CIP4 | |||||||||
| Power | AC220V,50-60HZ 5.5KVA | |||||||||
| Work environment | Temperature:20-25℃,Humility:40%-80% | |||||||||
